75W/11W GU10 720/780lm 2700K Ra97 DBT U-Dim

AR111

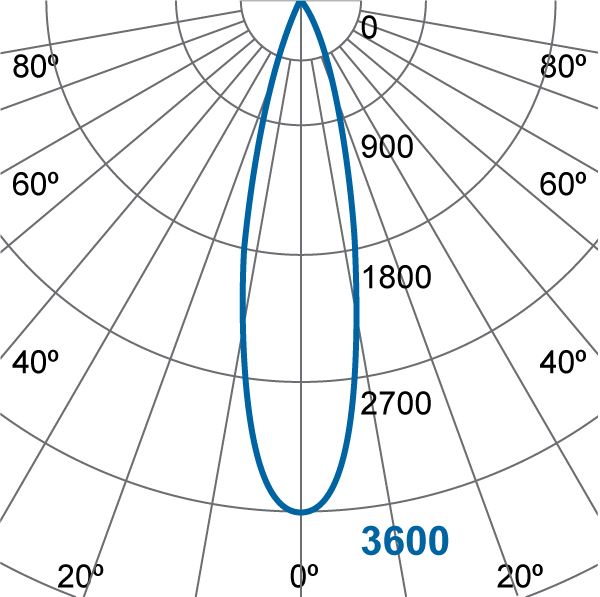

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	220-240V
Frequency (Hz)	50/60 Hz
Current (mA)	60
Power Factor (λ)	≥ 0.90
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Total Harmonic Distortion	.2
Product Data
Lamp Base	GU10
Product Wattage (W)	11
Equivalent Wattage (W)	75
Colour Temperature (K)	2700
Colour Render Index (Ra)	Ra97
Colour Consistency (SDCM)	4
Dimmable	100-5%
Operating Temperature	-30°C to +40°C
Maximum Casing Temperature (Tc)	45℃
Switching Cycles (times)	> 100000
Weight (g)	205
Application	Art Galleries, Exhibition Halls, Hospitality Installations, Restaurants, Retail Displays
Performance Data

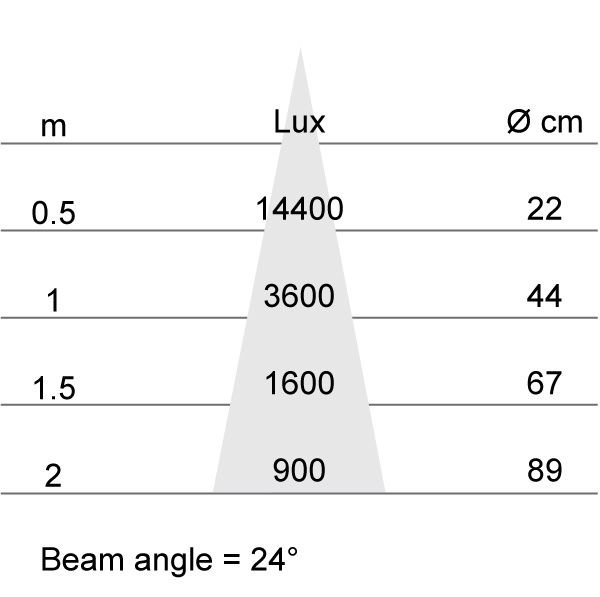

Max. Luminous Intensity (cd)	3600 [24°] / 1500 [45°]
Total Luminous Flux (lm)	800 [24°] / 870 [45°]
Luminous Flux in 90° cone (lm)	720 [24°] / 750 [45°]
Lumens per Watt (lm/W)	73 [24°] / 79 [45°]
Luminous Efficacy (lm/W)	73 [24°] / 79 [45°]
Rated Life (hrs)	40000
Product Dimensions
Diameter (mm)	111
Width (mm)	111
Height (mm)	82

Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.

Indoor
