Please open the web page in browser.PAR16 Glass
-
Discontinued
-
IES File
Spectral Power Distribution
Family Datasheet
Product Datasheet

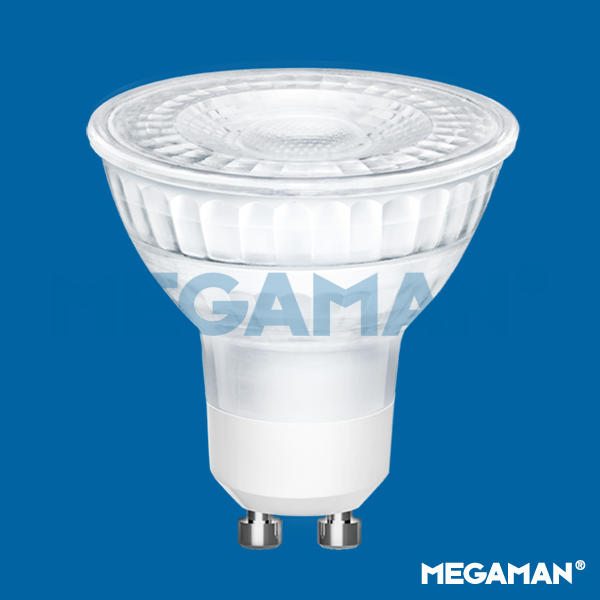

LR6304.5LN-WFL+036D+GU10+840+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 45 |
| Current (mA) | 45 |
| Power Factor (λ) | > 0.5 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Product Data | |
| Lamp Base | GU10 |
| Product Wattage (W) | 4.5 |
| Equivalent Wattage (W) | 50 |
| Reflector | PAR16 |
| Beam Angle (°) | 36 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | >100000 |
| Weight (g) | 45 |
| Application | Art Galleries, Display Cabinets, Hotel Lobbies, Residential Interiors, Restaurants, Shops |
| Performance Data | |
| Max. Luminous Intensity (cd) | 650 |
| Total Luminous Flux (lm) | 390 |
| Luminous Flux in 90° cone (lm) | 345 |
| Luminous Efficacy (lm/W) | 87 |
| Rated Life (hrs) | 15000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥70 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Height (mm) | 55 |
|
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm. |
|
