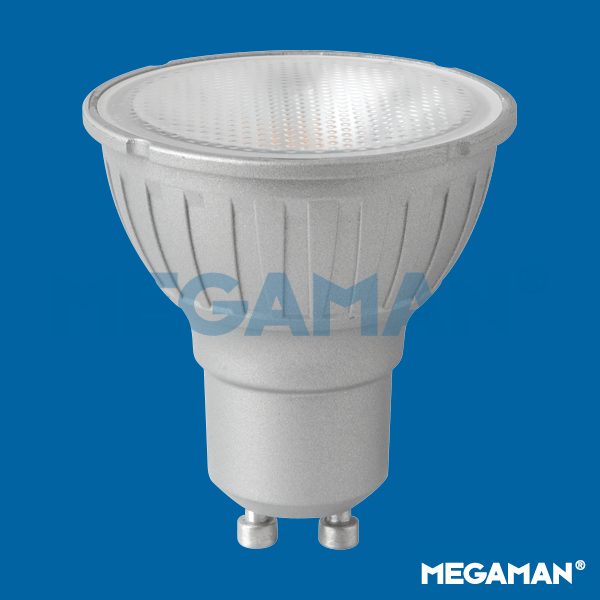

LR4605.5dDG-WFL-GU10-4000K-230V
| Electrical Data | |
| Voltage (V) | 220-240V |
| Product Data | |
| Lamp Base | GU10 |
| Product Wattage (W) | 5.5 |
| Reflector | PAR16 |
| Beam Angle (°) | 35 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | Ra85 |
| Dimmable | 100-10% |
| Operating Temperature | -30°C to +40°C |
| Mercury Content (mg) | N/A |
| Weight (g) | 63 |
| Application | Hospitality |
| Performance Data | |
| Max. Luminous Intensity (cd) | 560 |
| Total Luminous Flux (lm) | 500 |
| Luminous Flux in 90° cone (lm) | 345 |
| Rated Life (hrs) | 25000 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Length (mm) | 57 |
|
Remarks The rated lamp life, rated luminous flux in 90° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm. |
|
Technologies
-
Being able to adjust your LEDs with wide selection of dimming range from 100% to 10% or 20% for perfect atmosphere and/or scene setting – warm and bright, dim and cozy.
