Please open the web page in browser.CLUSTERLITE®
-
Discontinued
Spectral Power Distribution
Family Datasheet
Product Datasheet

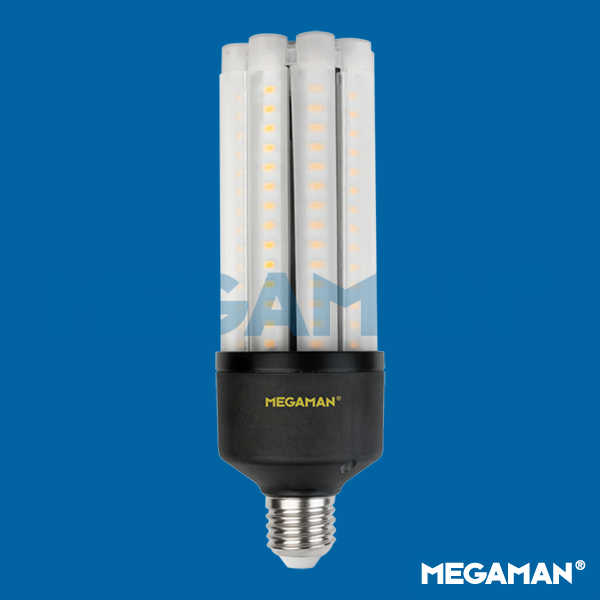

LH0133+E27+820+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 160 |
| Power Factor (λ) | > 0.9 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | E27 |
| Product Wattage (W) | 33 |
| Equivalent Wattage (W) | 66 |
| Colour Temperature (K) | 2000K |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour Consistency (SDCM) | SDCM ≤6 |
| Dimmable | No |
| Operating Temperature | -30°C to +60°C |
| Switching Cycles (times) | >1000000 |
| Weight (g) | 302 |
| Application | Car parks, Commercial Areas, Industrial Areas, Streets Areas, Underground Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 3300 |
| Luminous Efficacy (lm/W) | 100 |
| Rated Life (hrs) | 35000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥90 |
| Product Dimensions | |
| Diameter (mm) | 63 |
| Height (mm) | 195 |
|
Remarks The LED CLUSTERLITE® is not water resistant. The waterproof performance of the lamp would only be attained if the lamp is used with a light fitting with an IP rating of IP44 or above. |
|
