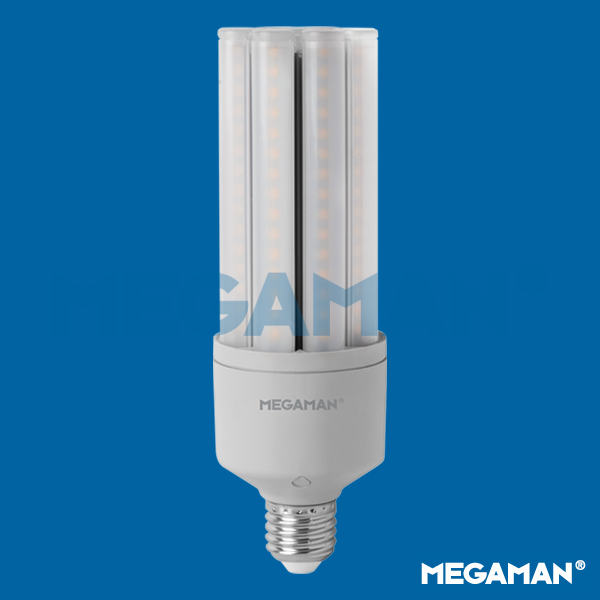

40W/22W E27 3000lm 4000K Ra80 Non-Dim

CLUSTERLITE^®

Spectral Power Distribution

Family Datasheet

Product Datasheet

Product Code:

Electrical Data
Voltage (V)	220-240V
Frequency (Hz)	50/60 Hz
Current (mA)	100
Power Factor (λ)	≥ 0.90
Starting Time (sec)	< 0.5 s
Warm-up Time Up to 60% of the Full Light Output (sec)	Instant
Total Harmonic Distortion	33%
Product Data
Lamp Base	E27
Product Wattage (W)	22
Equivalent Wattage (W)	40
Colour Temperature (K)	4000
Colour Render Index (Ra)	Ra80
Colour Consistency (SDCM)	6
Dimmable	No
Operating Temperature	-30°C to +60°C
Maximum Casing Temperature (Tc)	90°C
Switching Cycles (times)	> 100000
Weight (g)	275
Application	Car parks, Commercial Areas, High-ceilings, Industrial Areas, Streets Areas
Performance Data
Total Luminous Flux (lm)	3000
Luminous Flux in 120° cone (lm)	40
Luminous Efficacy (lm/W)	136
Rated Life (hrs)	45000
Product Dimensions
Diameter (mm)	63
Width (mm)	63
Height (mm)	195

Indoor
