FDL75700v0
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Input Current (mA) | 100 |
| Power Factor (λ) | >0.9 |
| Total Harmonic Distortion | <10% |
| Product Data | |
| Product Wattage (W) | 18 |
| Light Source | Integrated LED-3000 |

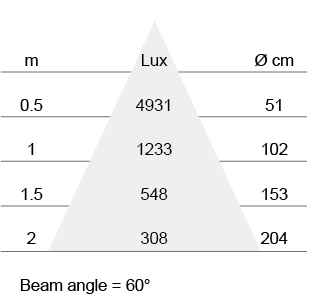

| Beam Angle (°) | 60 |
| Colour Render Index (Ra) | Ra80 |
| Protection Class | CL II |
| Colour Consistency (SDCM) | 4 |
| Dimmable | No |
| Energy Label | D |
| Operating Temperature | -30°C to +40°C |
| Ambient Temperature Range (Ta) | 40 |
| Switching Cycles (times) | 100000 |
| Weight (g) | 640 |
| Application | Bathrooms, Corridors, Hotels, Kitchens, Offices, Restaurants |
| Performance Data | |
| Rated Life (hrs) | 50,000hrs L80B10@Ta25°C |
| IP Rating | IP20/IP54 |
| Product Dimensions | |
| Diameter (mm) | 172 |
| Height (mm) | 97 |
